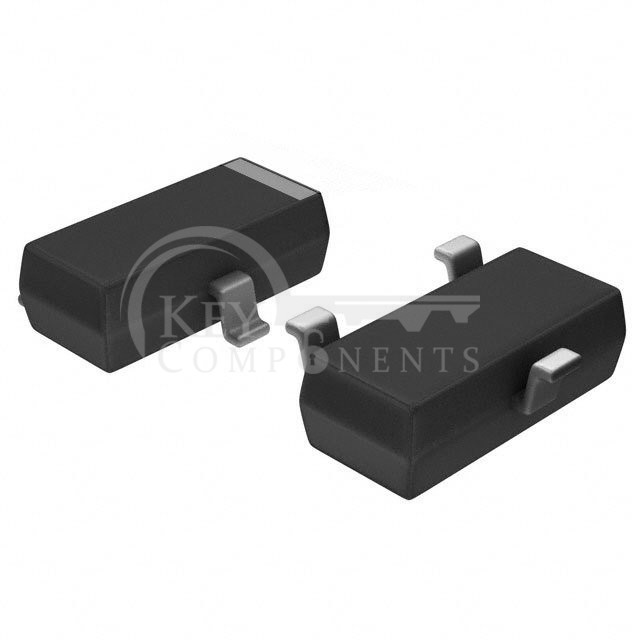

AO3407

AO3407

Manufacturer Part AO3407
Manufacturer Alpha & Omega Semiconductor Inc.
Description MOSFET P-CH 30V 4.1A SOT23-3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:4.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:52mOhm @ 4.1A, 10V
Vgs(th) (Max) @ Id:2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:11 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:520 pF @ 15 V
FET Feature:-
Power Dissipation (Max):1.4W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3
Package / Case:3-SMD, SOT-23-3 Variant
