AO6411

AO6411

Manufacturer Part AO6411
Manufacturer Alpha & Omega Semiconductor Inc.
Description MOSFET P-CH 20V 7A 6TSOP
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:18 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:1025 pF @ 10 V
FET Feature:-
Power Dissipation (Max):2.7W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount

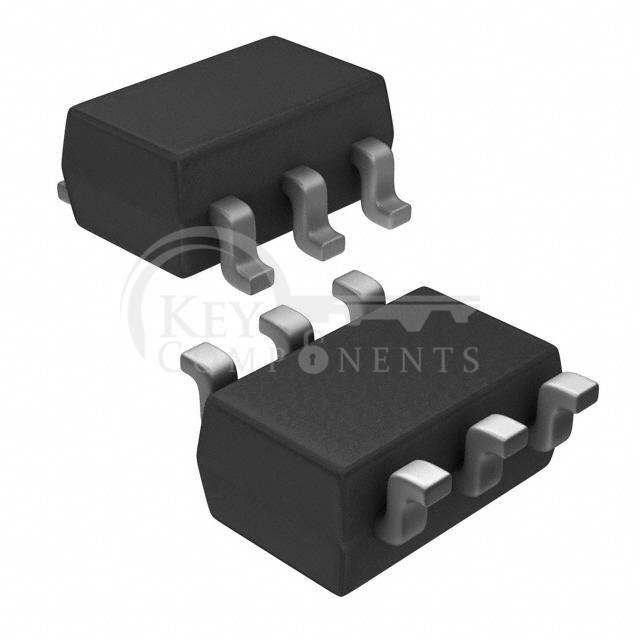

Supplier Device Package:6-TSOP
Package / Case:SC-74, SOT-457
