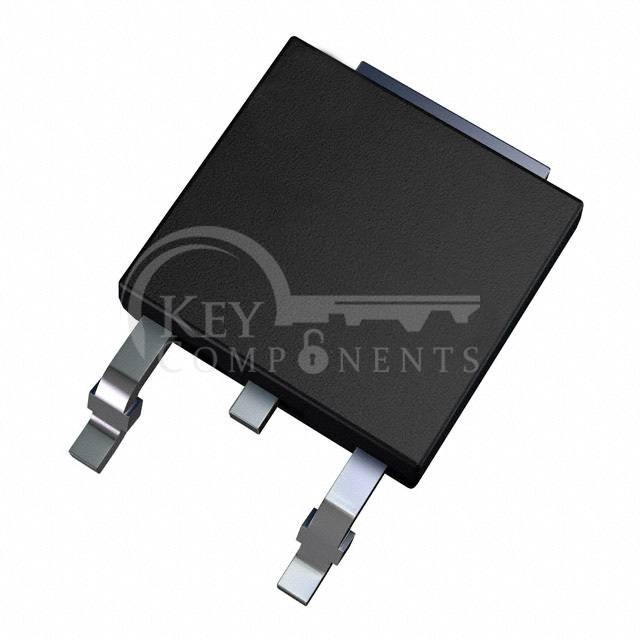

AOD210

AOD210

Manufacturer Part AOD210
Manufacturer Alpha & Omega Semiconductor Inc.
Description MOSFET N-CH 30V 23A/70A TO252
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:23A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:58 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4300 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.7W (Ta), 150W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:TO-252 (DPAK)
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
