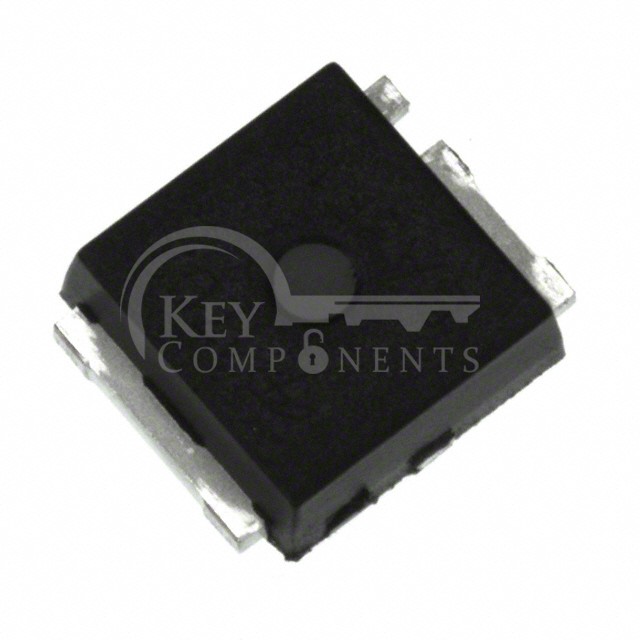

AOL1202

Manufacturer Part	AOL1202
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N-CH 30V 16A/54A ULTRASO8
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	16A (Ta), 54A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	4.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	33 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2200 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 58W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	UltraSO-8™
Package / Case:	3-PowerSMD, Flat Leads
