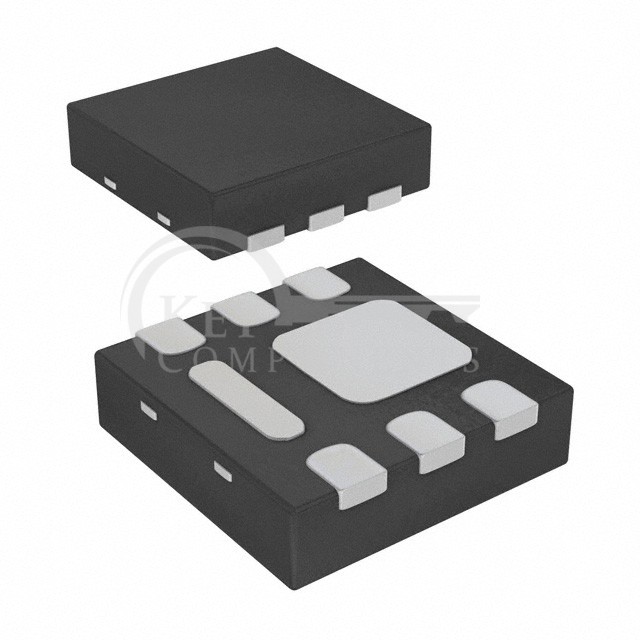

AON2400

AON2400

Manufacturer Part AON2400
Manufacturer Alpha & Omega Semiconductor Inc.
Description MOSFET N-CH 8V 8A 6DFN
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):8 V
Current - Continuous Drain (Id) @ 25°C:8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.2V, 2.5V
Rds On (Max) @ Id, Vgs:11mOhm @ 8A, 2.5V
Vgs(th) (Max) @ Id:750mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:16 nC @ 4.5 V
Vgs (Max):±5V
Input Capacitance (Ciss) (Max) @ Vds:1645 pF @ 4 V
FET Feature:-
Power Dissipation (Max):2.8W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-DFN (2x2)
Package / Case:6-UDFN Exposed Pad
