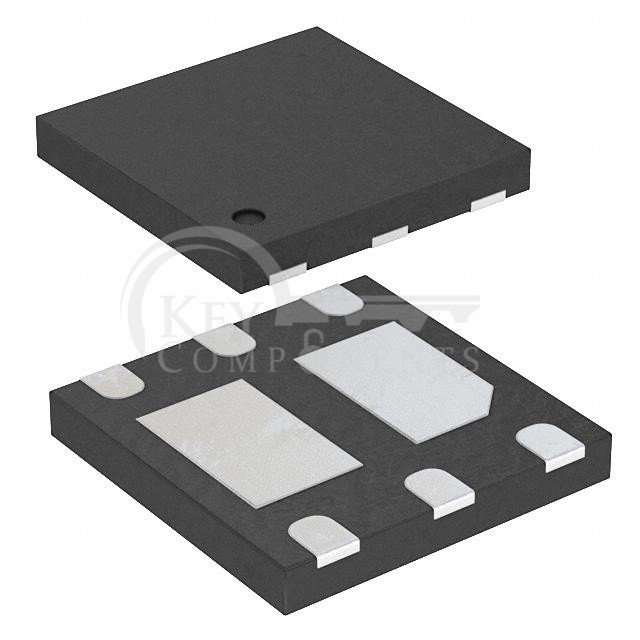

AON2801

Manufacturer Part	AON2801
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET 2P-CH 20V 3A DFN2X2-6L
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	3A
Rds On (Max) @ Id, Vgs:	120mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	700pF @ 10V
Power - Max:	1.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-DFN (2x2)
