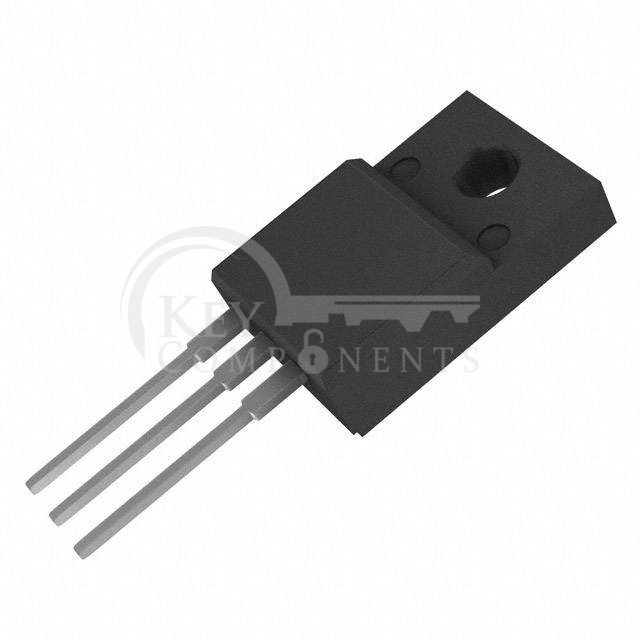

AOTF11N62

Manufacturer Part	AOTF11N62
Manufacturer	Alpha & Omega Semiconductor Inc.
Description	MOSFET N-CH 620V 11A TO220-3F
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	620 V
Current - Continuous Drain (Id) @ 25°C:	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	650mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	37 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	1990 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	50W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220F
Package / Case:	TO-220-3 Full Pack
