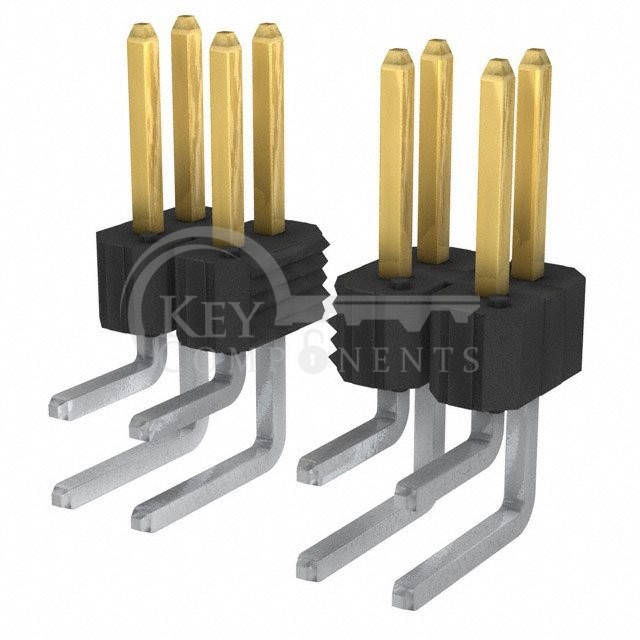

68021-116HLF

Type	Description
Product Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	-
Insulation Height:	0.190" (4.83mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold, GXT™
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	-
Features:	-
Operating Temperature:	-65°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A per Contact
Voltage Rating:	110V
