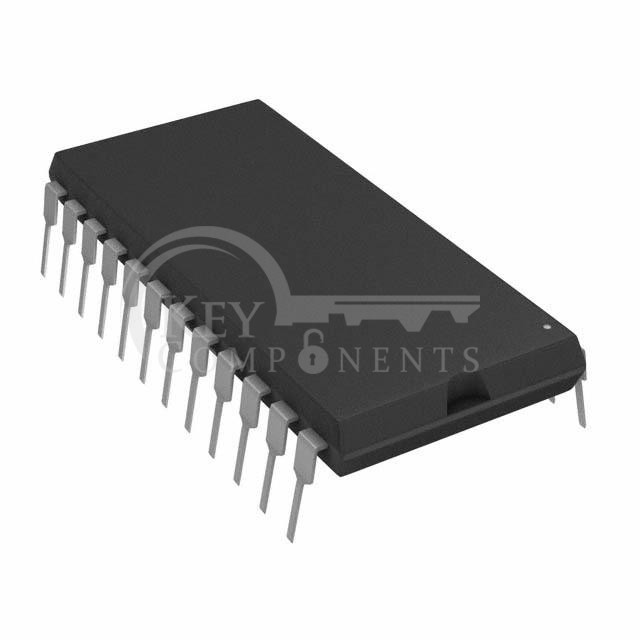

DS17285-5

DS17285-5

Manufacturer Part DS17285-5
Manufacturer Analog Devices Inc./Maxim Integrated
Description IC RTC CLK/CALENDAR PAR 24-DIP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Type:Clock/Calendar
Features:Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
Memory Size:2KB
Time Format:HH:MM:SS (12/24 hr)
Date Format:YY-MM-DD-dd
Interface:Parallel
Voltage - Supply:4.5V ~ 5.5V
Voltage - Supply, Battery:2.5V ~ 3.7V
Current - Timekeeping (Max):3mA @ 4.5V ~ 5.5V
Operating Temperature:0°C ~ 70°C
Mounting Type:Through Hole
Package / Case:24-DIP (0.600", 15.24mm)
Supplier Device Package:24-PDIP
