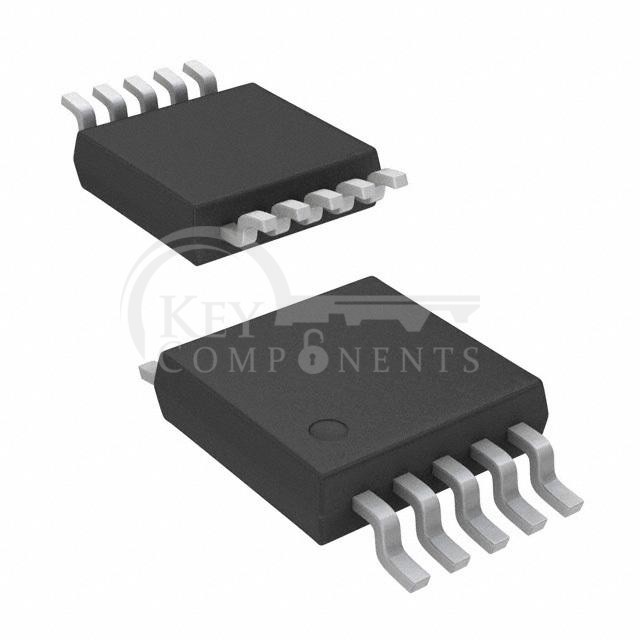

AD5446YRMZ
| Manufacturer Part | AD5446YRMZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC DAC 14BIT A-OUT 10MSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Bits: | 14 |
| Number of D/A Converters: | 1 |
| Settling Time: | 110ns |
| Output Type: | Current - Unbuffered |
| Differential Output: | Yes |
| Data Interface: | SPI, DSP |
| Reference Type: | External |
| Voltage - Supply, Analog: | 2.5V ~ 5.5V |
| Voltage - Supply, Digital: | 2.5V ~ 5.5V |
| INL/DNL (LSB): | ±2 (Max), -1/+2 (Max) |
| Architecture: | R-2R |
| Operating Temperature: | -40°C ~ 125°C |
| Package / Case: | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package: | 10-MSOP |
| Mounting Type: | Surface Mount |
