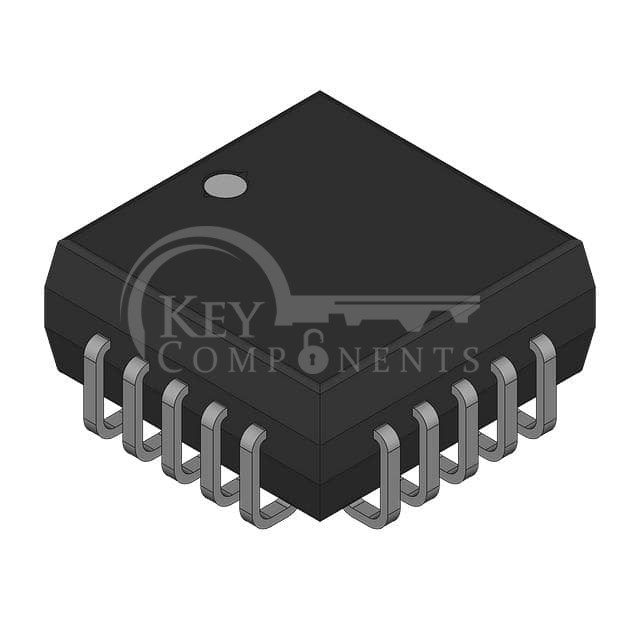

AD7548KP
| Manufacturer Part | AD7548KP |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC DAC 12BIT A-OUT 20PLCC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 12 |
| Number of D/A Converters: | 1 |
| Settling Time: | 1.5µs (Typ) |
| Output Type: | Current - Unbuffered |
| Differential Output: | No |
| Data Interface: | Parallel |
| Reference Type: | External |
| Voltage - Supply, Analog: | 5V, 11.4V ~ 15.75V |
| Voltage - Supply, Digital: | 5V, 11.4V ~ 15.75V |
| INL/DNL (LSB): | ±0.5 (Max), ±0.5 (Max) |
| Architecture: | R-2R |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 20-LCC (J-Lead) |
| Supplier Device Package: | 20-PLCC (9x9) |
| Mounting Type: | Surface Mount |
