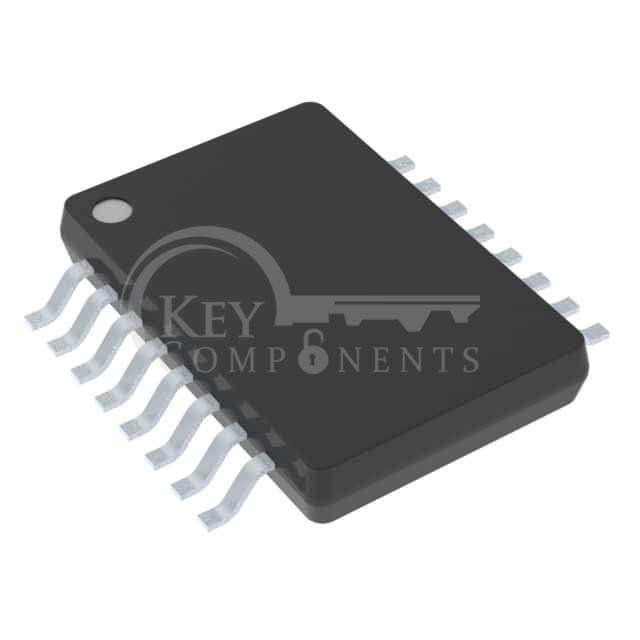

AD8802ARUZ
| Manufacturer Part | AD8802ARUZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC DAC 8BIT V-OUT 20TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Bits: | 8 |
| Number of D/A Converters: | 12 |
| Settling Time: | 600ns (Typ) |
| Output Type: | Voltage - Unbuffered |
| Differential Output: | No |
| Data Interface: | SPI |
| Reference Type: | External |
| Voltage - Supply, Analog: | 2.7V ~ 5.5V |
| Voltage - Supply, Digital: | 2.7V ~ 5.5V |
| INL/DNL (LSB): | ±0.5, ±0.25 |
| Architecture: | R-2R |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 20-TSSOP |
| Mounting Type: | Surface Mount |
