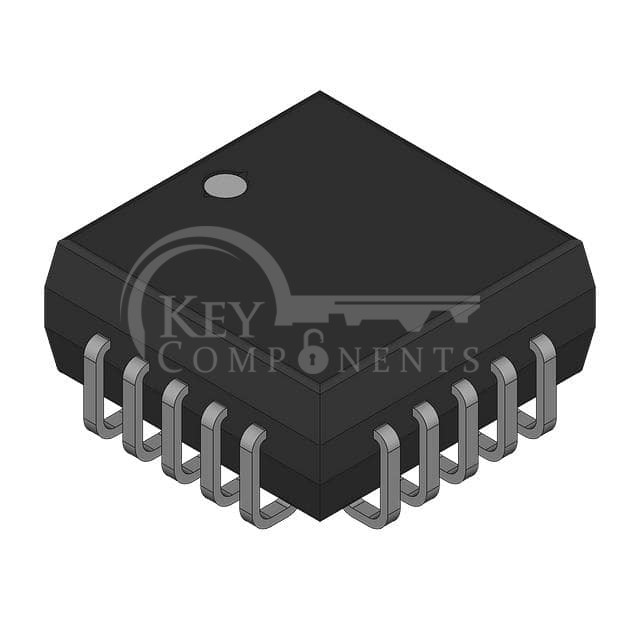

AD96687BP
| Manufacturer Part | AD96687BP |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC COMPARATOR DUAL 2.5NS 20-PLCC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | with Latch |
| Number of Elements: | 2 |
| Output Type: | Complementary, ECL, Open-Emitter |
| Voltage - Supply, Single/Dual (±): | - |
| Voltage - Input Offset (Max): | 2mV @ -5.2V, 5V |
| Current - Input Bias (Max): | 10µA @ -5.2V,5V |
| Current - Output (Typ): | 30mA |
| Current - Quiescent (Max): | 18mA,36mA |
| CMRR, PSRR (Typ): | 90dB CMRR, 70dB PSRR |
| Propagation Delay (Max): | 3.5ns |
| Hysteresis: | - |
| Operating Temperature: | -25°C ~ 85°C |
| Package / Case: | 20-LCC (J-Lead) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 20-PLCC (9x9) |
