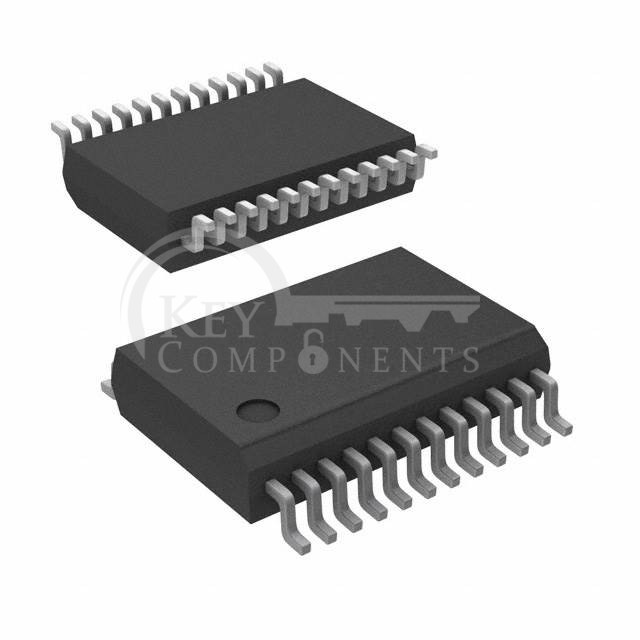

ADE7751ARSZ
| Manufacturer Part | ADE7751ARSZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC ENERGY METERING 1PHASE 24SSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Input Impedance: | 390kOhm |
| Measurement Error: | 0.1% |
| Voltage - I/O High: | 2.4V, 4V, 4.5V |
| Voltage - I/O Low: | 0.5V, 0.8V |
| Current - Supply: | 3mA |
| Voltage - Supply: | 4.75 V ~ 5.25 V |
| Meter Type: | Single Phase |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package: | 24-SSOP |
