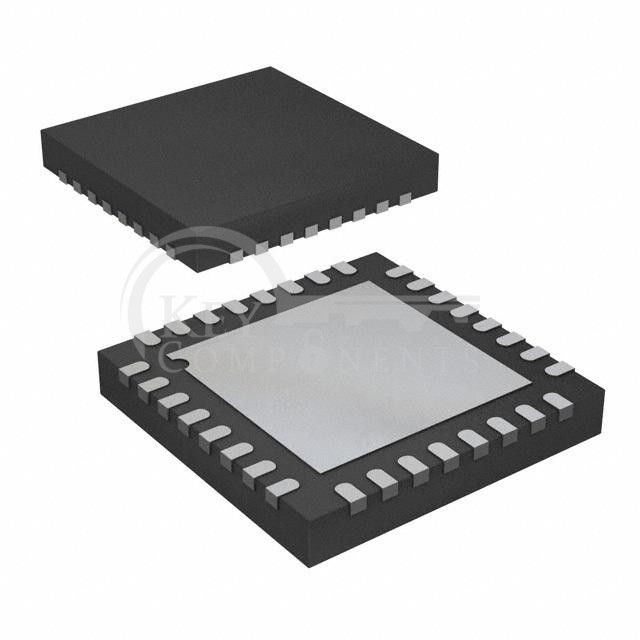

ADF7023-JBCPZ
| Manufacturer Part | ADF7023-JBCPZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC RF TXRX+MCU ISM<1GHZ 32WFQFN |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | TxRx + MCU |
| RF Family/Standard: | General ISM < 1GHz |
| Protocol: | - |
| Modulation: | 2FSK, GFSK, GMSK, MSK |
| Frequency: | 902MHz ~ 958MHz |
| Data Rate (Max): | 300kbps |
| Power - Output: | 13.5dBm |
| Sensitivity: | -116dBm |
| Memory Size: | 4kB ROM, 2.5kB RAM |
| Serial Interfaces: | SPI |
| GPIO: | 6 |
| Voltage - Supply: | 2.2V ~ 3.6V |
| Current - Receiving: | 12.8mA |
| Current - Transmitting: | 9.3mA ~ 32.1mA |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package: | 32-LFCSP (5x5) |
