ADG1207YRUZ

Type	Description
Product Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	8:1
Number of Circuits:	2
On-State Resistance (Max):	200Ohm
Channel-to-Channel Matching (ΔRon):	3.5Ohm
Voltage - Supply, Single (V+):	5V ~ 16.5V
Voltage - Supply, Dual (V±):	±5V ~ 16.5V
Switch Time (Ton, Toff) (Max):	95ns, 100ns
-3db Bandwidth:	490MHz
Charge Injection:	0.5pC
Channel Capacitance (CS(off), CD(off)):	2pF, 9pF
Current - Leakage (IS(off)) (Max):	200pA
Crosstalk:	-85dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount

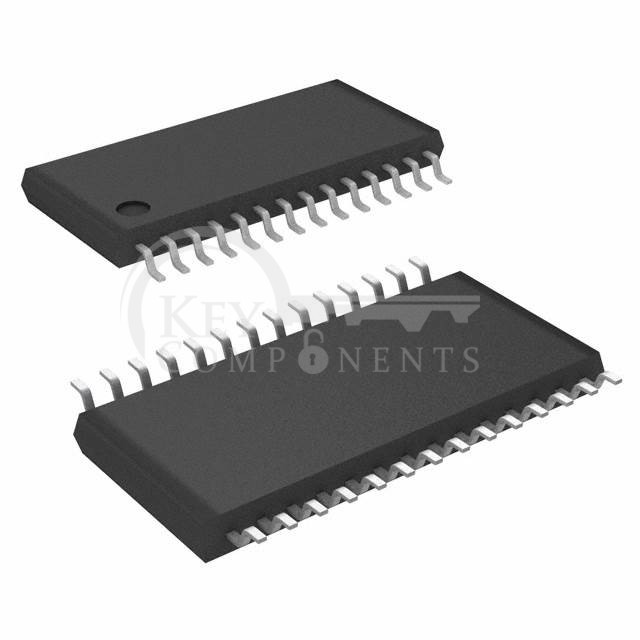

Package / Case:	28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	28-TSSOP

We provide 90 days warranty;
The Pre-Shipment Inspection (PSI) will be applied;
If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
Taxes & VAT will not be included;
