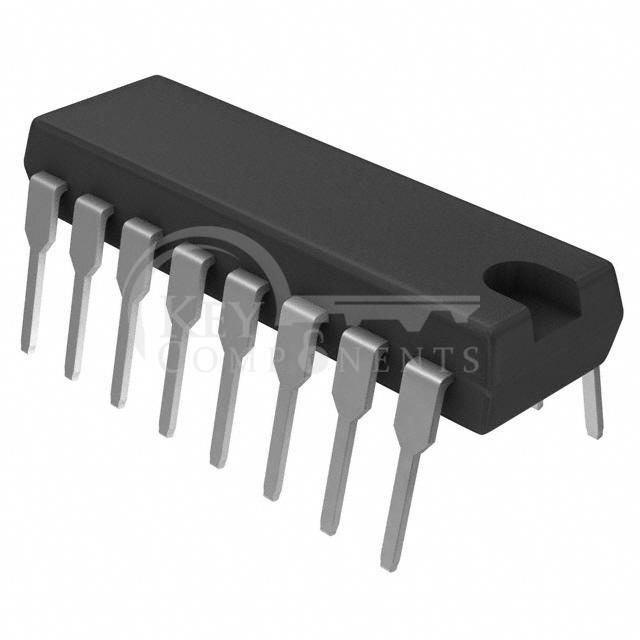

ADG201HSKN

ADG201HSKN

Manufacturer Part ADG201HSKN
Manufacturer Analog Devices Inc.
Description IC SWITCH QUAD SPST 16DIP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Switch Circuit:SPST - NC
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):50Ohm
Channel-to-Channel Matching (ΔRon):1.5Ohm
Voltage - Supply, Single (V+):10.8V ~ 16.5V
Voltage - Supply, Dual (V±):±13.5V ~ 16.5V
Switch Time (Ton, Toff) (Max):50ns, 50ns
-3db Bandwidth:-
Charge Injection:10pC
Channel Capacitance (CS(off), CD(off)):10pF, 10pF
Current - Leakage (IS(off)) (Max):1nA
Crosstalk:-86dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Through Hole
Package / Case:16-DIP (0.300", 7.62mm)
Supplier Device Package:16-PDIP
