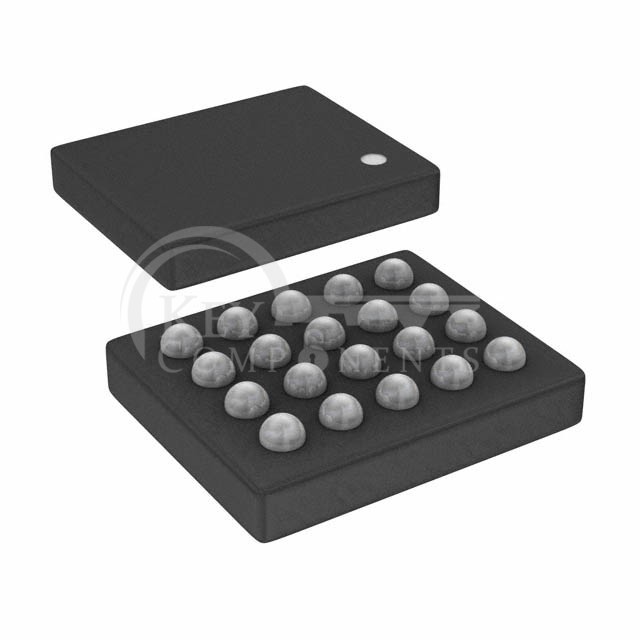

ADG3308BCBZ-1-RL7
| Manufacturer Part | ADG3308BCBZ-1-RL7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC TRNSLTR BIDIRECTIONAL 20WLCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Translator Type: | Voltage Level |
| Channel Type: | Bidirectional |
| Number of Circuits: | 1 |
| Channels per Circuit: | 8 |
| Voltage - VCCA: | 1.15 V ~ 5.5 V |
| Voltage - VCCB: | 1.65 V ~ 5.5 V |
| Input Signal: | - |
| Output Signal: | - |
| Output Type: | Tri-State, Non-Inverted |
| Data Rate: | 50Mbps |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Features: | Auto-Direction Sensing |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-UFBGA, WLCSP |
| Supplier Device Package: | 20-WLCSP (2.5x2) |
