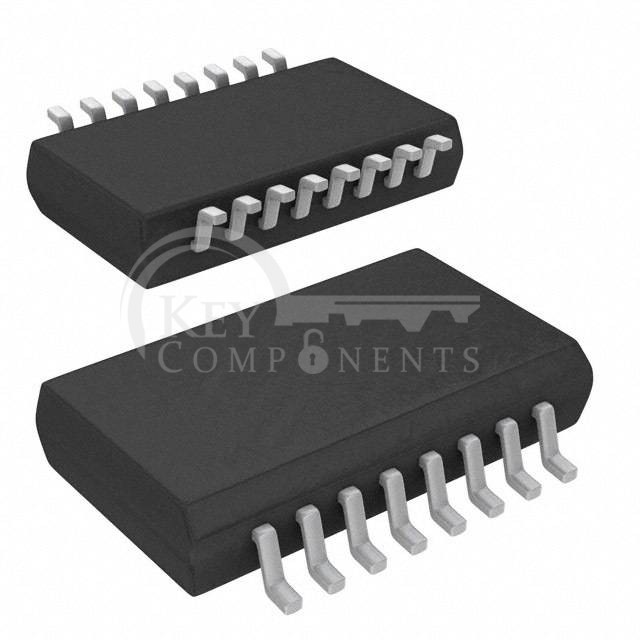

ADG436BR

ADG436BR

Manufacturer Part ADG436BR
Manufacturer Analog Devices Inc.
Description IC SWITCH DUAL SPDT 16SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:2
On-State Resistance (Max):12Ohm (Typ)
Channel-to-Channel Matching (ΔRon):1Ohm
Voltage - Supply, Single (V+):3V ~ 30V
Voltage - Supply, Dual (V±):±3V ~ 20V
Switch Time (Ton, Toff) (Max):70ns, 60ns (Typ)
-3db Bandwidth:-
Charge Injection:10pC
Channel Capacitance (CS(off), CD(off)):13pF
Current - Leakage (IS(off)) (Max):250pA
Crosstalk:-90dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:16-SOIC
