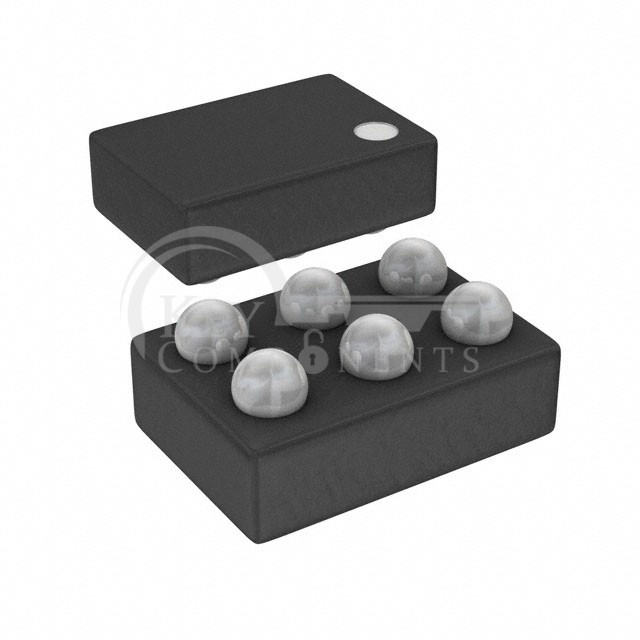

ADL5504ACBZ-P7
| Manufacturer Part | ADL5504ACBZ-P7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC RF DETECT 450MHZ-6GHZ 6WLCSP |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Frequency: | 450MHz ~ 6GHz |
| RF Type: | CDMA, QPSK, W-CDMA |
| Input Range: | -25dB ~ 15dB |
| Accuracy: | ±0.25dB |
| Voltage - Supply: | 2.5V ~ 3.3V |
| Current - Supply: | 1.8 mA |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-UFBGA, WLCSP |
| Supplier Device Package: | 6-WLCSP (0.91x1.39) |
