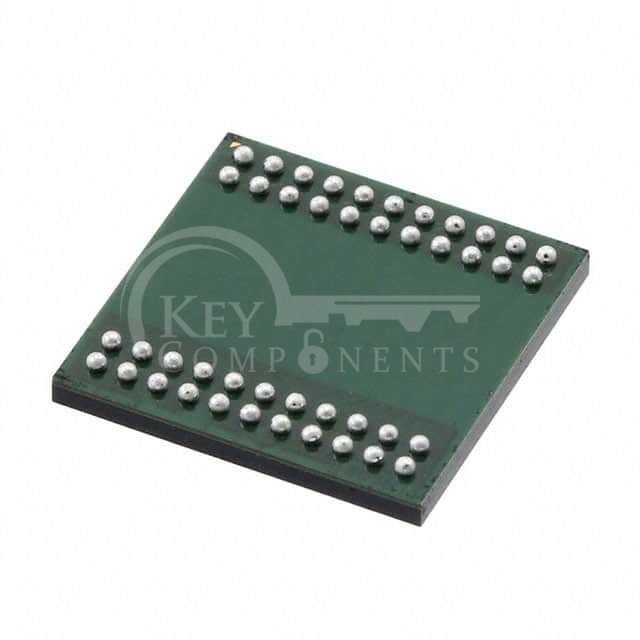

ADM3252EABCZ
| Manufacturer Part | ADM3252EABCZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | DGTL ISO 2500VRMS RS232 44CSPBGA |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Technology: | Magnetic Coupling |
| Type: | RS232 |
| Isolated Power: | Yes |
| Number of Channels: | 4 |
| Inputs - Side 1/Side 2: | 2/2 |
| Channel Type: | Unidirectional |
| Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs |
| Data Rate: | 460Kbps |
| Propagation Delay tpLH / tpHL (Max): | - |
| Pulse Width Distortion (Max): | - |
| Rise / Fall Time (Typ): | 2.5ns, 2.5ns |
| Voltage - Supply: | 3V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 44-LBGA, CSPBGA |
| Supplier Device Package: | 44-CSPBGA (12x12) |
