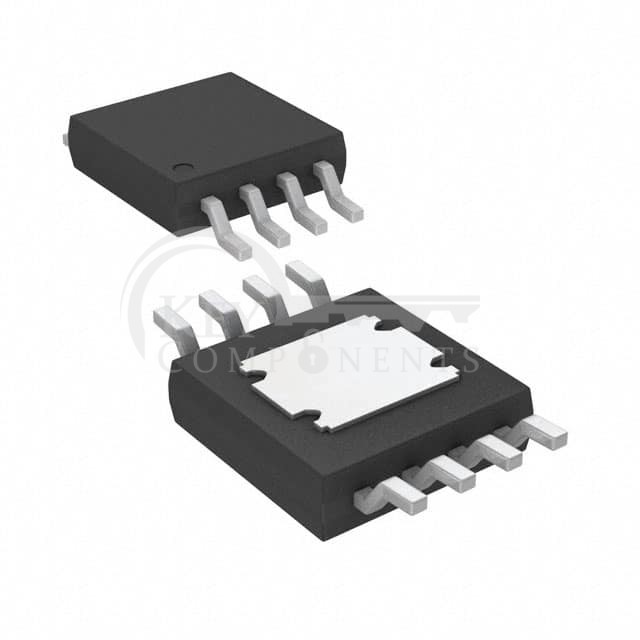

ADP3654ARHZ-RL

Manufacturer Part	ADP3654ARHZ-RL
Manufacturer	Analog Devices Inc.
Description	IC GATE DRVR LOW-SIDE 8MINISOIC
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Driven Configuration:	Low-Side
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	4.5V ~ 18V
Logic Voltage - VIL, VIH:	0.8V, 2V
Current - Peak Output (Source, Sink):	4A, 4A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	-
Rise / Fall Time (Typ):	10ns, 10ns
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:	8-MSOP-EP
