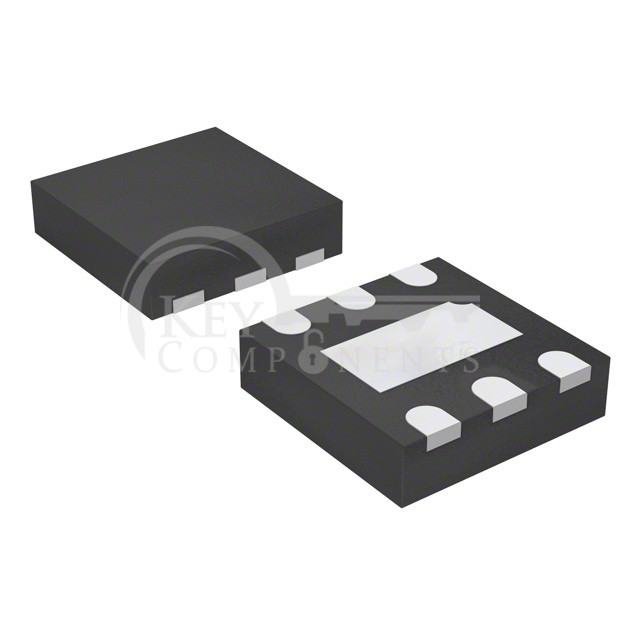

ADP7142ACPZN3.3-R7

ADP7142ACPZN3.3-R7

Manufacturer Part ADP7142ACPZN3.3-R7
Manufacturer Analog Devices Inc.
Description IC REG LINEAR 3.3V 200MA 6LFCSP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):40V
Voltage - Output (Min/Fixed):3.3V
Voltage - Output (Max):-
Voltage Dropout (Max):0.42V @ 200mA
Current - Output:200mA
Current - Quiescent (Iq):140 µA
Current - Supply (Max):320 µA
PSRR:-
Control Features:Enable, Soft Start
Protection Features:Over Temperature, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-UDFN Exposed Pad, CSP
Supplier Device Package:6-LFCSP-UD (2x2)
