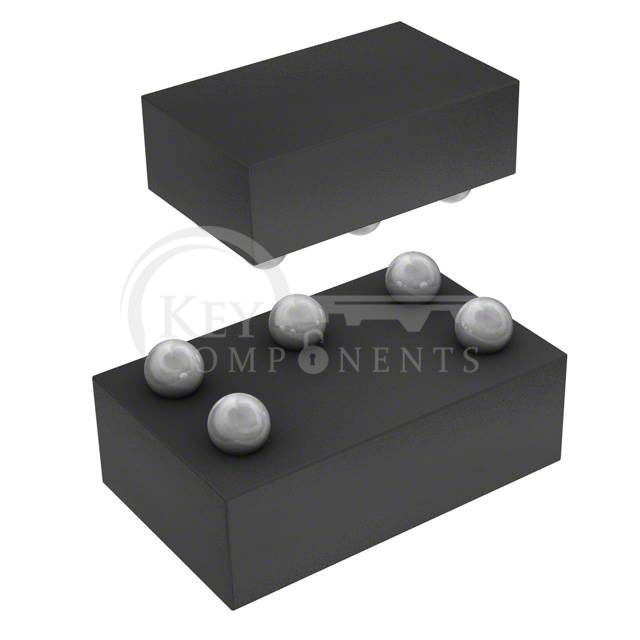

AK09916C
| Manufacturer Part | AK09916C |
|---|---|
| Manufacturer | Asahi Kasei Microdevices/AKM |
| Description | SENSOR HALL EFFECT I2C 5WLCSP |
| Category | Sensors, Transducers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Technology: | Hall Effect |
| Axis: | X, Y, Z |
| Output Type: | I²C |
| Sensing Range: | 4.7mT ~ 5.2mT |
| Voltage - Supply: | 1.65V ~ 1.95V |
| Current - Supply (Max): | 4mA |
| Current - Output (Max): | 3mA |
| Resolution: | 16 b |
| Bandwidth: | - |
| Operating Temperature: | -30°C ~ 85°C (TA) |
| Features: | - |
| Supplier Device Package: | 5-WLCSP (1.18x0.78) |
| Mounting Type: | Surface Mount |
| Package / Case: | 5-UFBGA, WLCSP |
