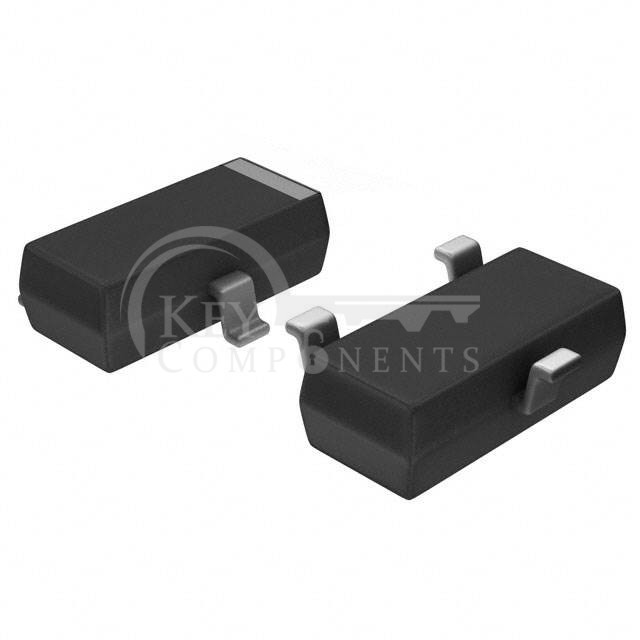

HSMP-3812-TR1G
| Manufacturer Part | HSMP-3812-TR1G |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | RF DIODE PIN 100V SOT23-3 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Diode Type: | PIN - 1 Pair Series Connection |
| Voltage - Peak Reverse (Max): | 100V |
| Current - Max: | 1 A |
| Capacitance @ Vr, F: | 0.35pF @ 50V, 1MHz |
| Resistance @ If, F: | 3Ohm @ 100mA, 100MHz |
| Power Dissipation (Max): | - |
| Operating Temperature: | 150°C (TJ) |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
