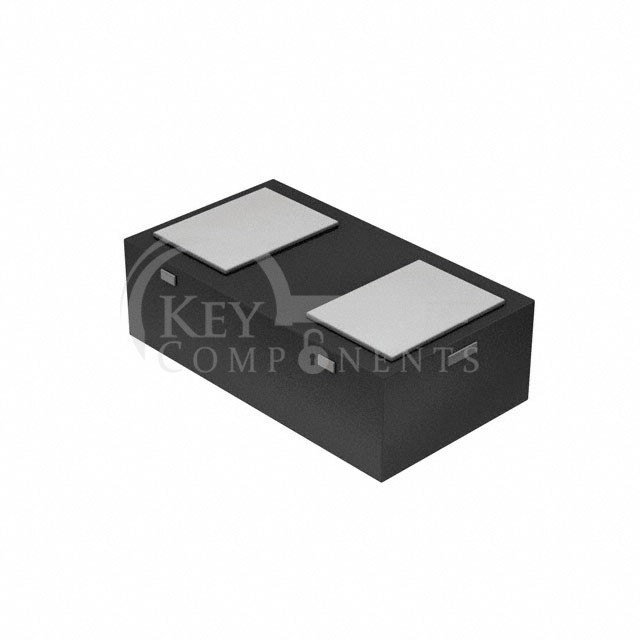

CPDUC5V0R-HF

CPDUC5V0R-HF

Manufacturer Part CPDUC5V0R-HF
Manufacturer Comchip Technology
Description TVS DIODE 5VWM 12V 0603C/SOD523F
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):5.6V
Voltage - Clamping (Max) @ Ipp:12V
Current - Peak Pulse (10/1000µs):11A (8/20µs)
Power - Peak Pulse:-
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:24pF @ 1MHz
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603C/SOD-523F
