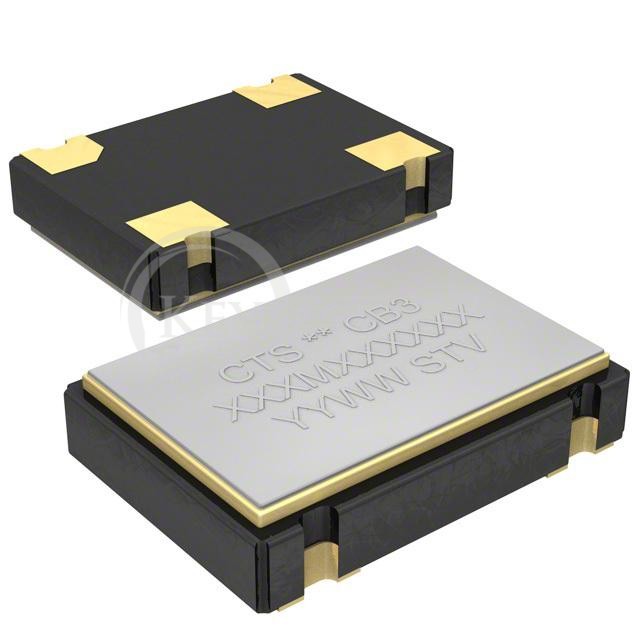

CB3LV-3C-3M686400
| Manufacturer Part | CB3LV-3C-3M686400 |
|---|---|
| Manufacturer | CTS-Frequency Controls |
| Description | XTAL OSC XO 3.6864MHZ HCMOS TTL |
| Category | Crystals, Oscillators, Resonators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Base Resonator: | Crystal |
| Type: | XO (Standard) |
| Frequency: | 3.6864 MHz |
| Function: | Enable/Disable |
| Output: | HCMOS, TTL |
| Voltage - Supply: | 3.3V |
| Frequency Stability: | ±50ppm |
| Absolute Pull Range (APR): | - |
| Operating Temperature: | -20°C ~ 70°C |
| Spread Spectrum Bandwidth: | - |
| Current - Supply (Max): | 12mA |
| Ratings: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 4-SMD, No Lead |
| Size / Dimension: | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max): | 0.071" (1.80mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
