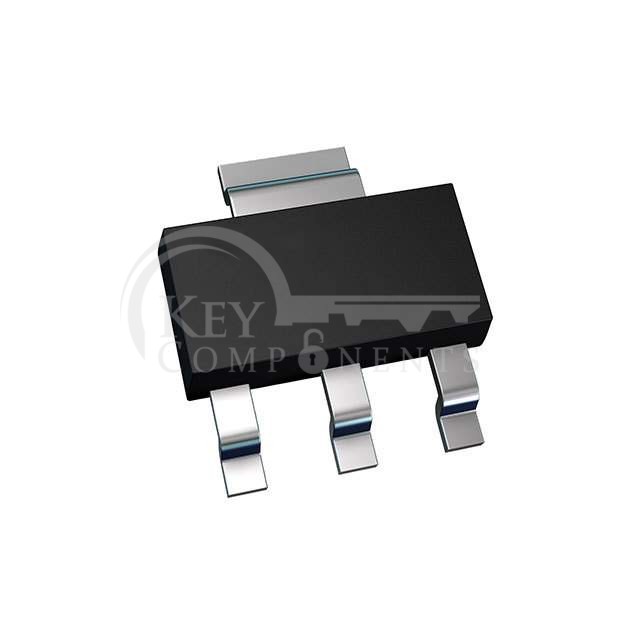

DCP69A-16-13

Manufacturer Part	DCP69A-16-13
Manufacturer	Diodes Incorporated
Description	TRANS PNP 20V 1A SOT223-3
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	20 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 100mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	85 @ 500mA, 1V
Power - Max:	1 W
Frequency - Transition:	250MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-261-4, TO-261AA
Supplier Device Package:	SOT-223-3
