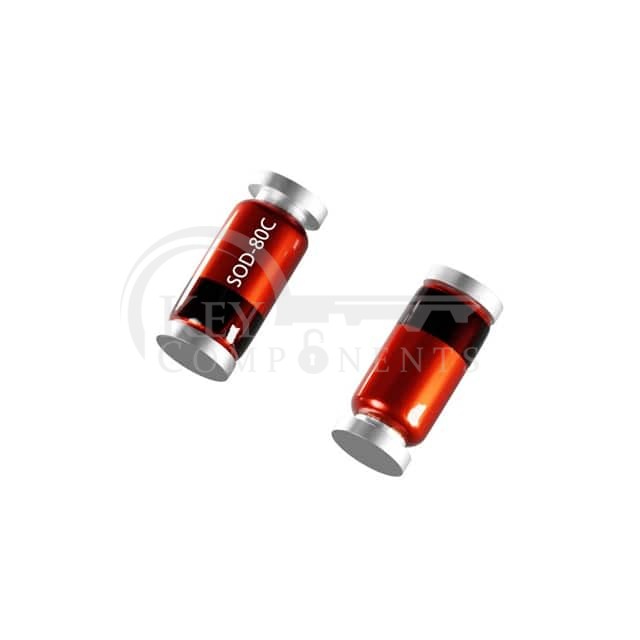

ZMM10B
| Manufacturer Part | ZMM10B |
|---|---|
| Manufacturer | Diotec Semiconductor |
| Description | DIODE ZENER 10V 500MW SOD80C |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Voltage - Zener (Nom) (Vz): | 10 V |
| Tolerance: | ±2% |
| Power - Max: | 500 mW |
| Impedance (Max) (Zzt): | 15 Ohms |
| Current - Reverse Leakage @ Vr: | 100 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If: | - |
| Operating Temperature: | -50°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package: | SOD-80C |
