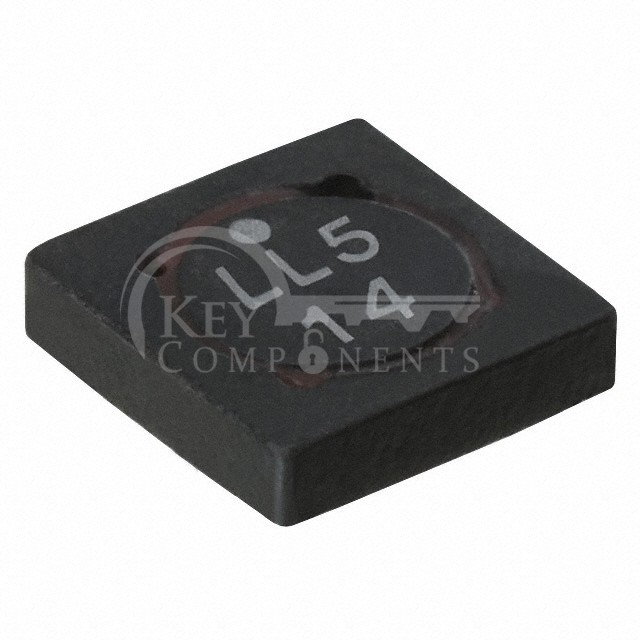

SD14-100-R
| Manufacturer Part | SD14-100-R |
|---|---|
| Manufacturer | Eaton - Electronics Division |
| Description | FIXED IND 10UH 1.1A 205.8MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 10 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 1.1 A |
| Current - Saturation (Isat): | 1.18A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 205.8mOhm |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max): | 0.057" (1.45mm) |
