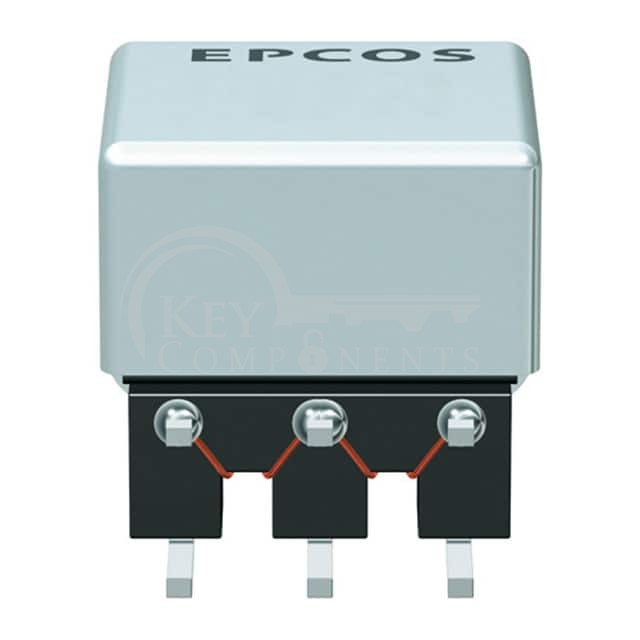

B78416A2232A003
| Manufacturer Part | B78416A2232A003 |
|---|---|
| Manufacturer | EPCOS - TDK Electronics |
| Description | SMT TRANSFORMER FOR ULTRASONIC S |
| Category | Transformers |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transformer Type: | - |
| Inductance: | 3mH |
| ET (Volt-Time): | - |
| Turns Ratio - Primary:Secondary: | - |
| Mounting Type: | Surface Mount |
| Size / Dimension: | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Height - Seated (Max): | 0.280" (7.10mm) |
| Operating Temperature: | - |
