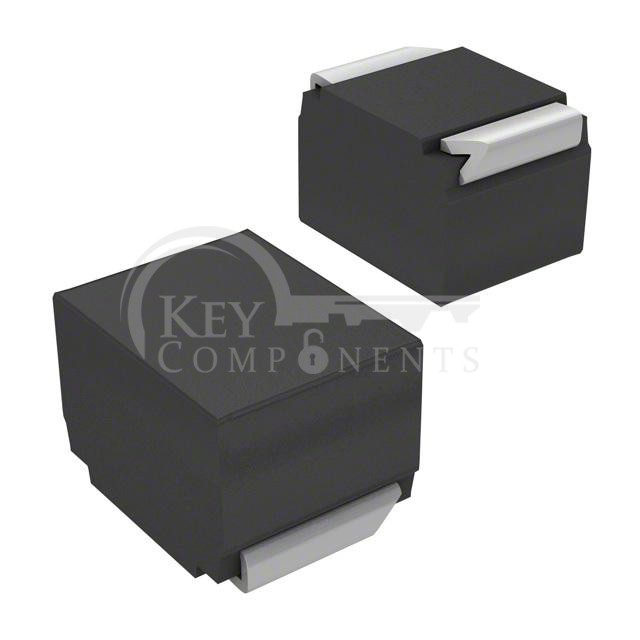

B82422A3330J100
| Manufacturer Part | B82422A3330J100 |
|---|---|
| Manufacturer | EPCOS - TDK Electronics |
| Description | FIXED IND 33NH 540MA 170MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ceramic |
| Inductance: | 33 nH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 540 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 170mOhm Max |
| Q @ Freq: | 20 @ 50MHz |
| Frequency - Self Resonant: | 1.7GHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -55°C ~ 125°C |
| Inductance Frequency - Test: | 10 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 2-SMD, J-Lead |
| Supplier Device Package: | 1210 (3225 Metric) |
| Size / Dimension: | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max): | 0.083" (2.10mm) |
