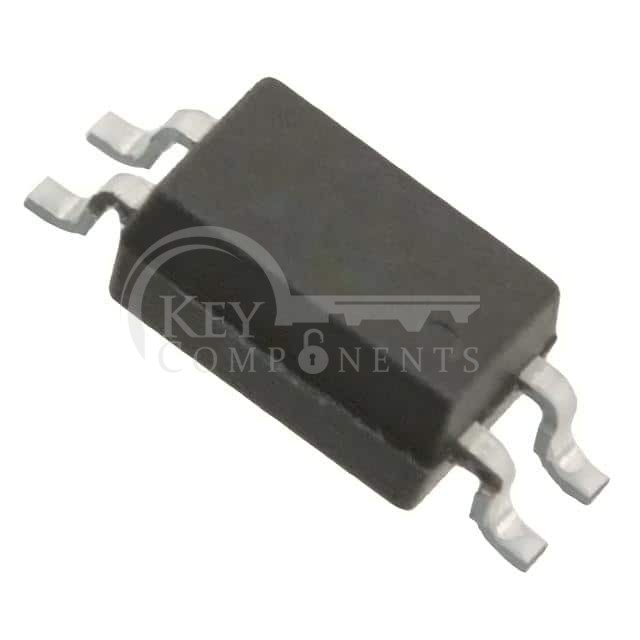

EL3H4-G
| Manufacturer Part | EL3H4-G |
|---|---|
| Manufacturer | Everlight Electronics Co Ltd |
| Description | OPTOISOLATOR 3.75KV TRANS 4-SSOP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 3750Vrms |
| Current Transfer Ratio (Min): | 20% @ 1mA |
| Current Transfer Ratio (Max): | 300% @ 1mA |
| Turn On / Turn Off Time (Typ): | - |
| Rise / Fall Time (Typ): | 6µs, 8µs |
| Input Type: | AC, DC |
| Output Type: | Transistor |
| Voltage - Output (Max): | 80V |
| Current - Output / Channel: | - |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Current - DC Forward (If) (Max): | 50 mA |
| Vce Saturation (Max): | 200mV |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package: | 4-SSOP |
