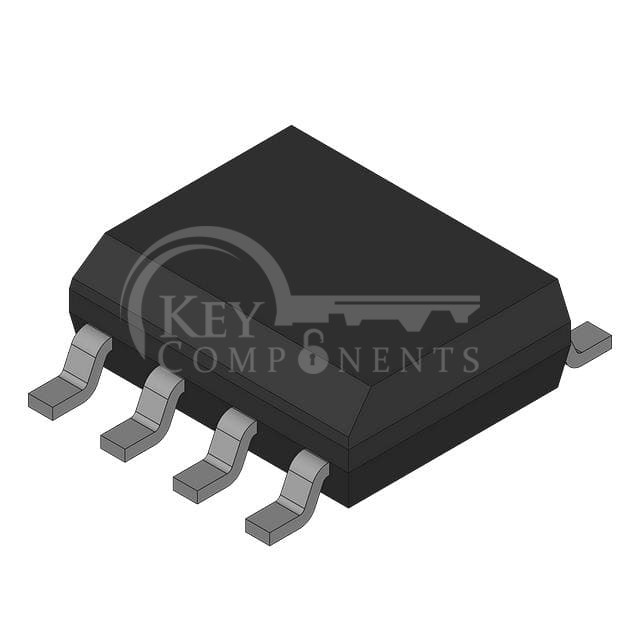

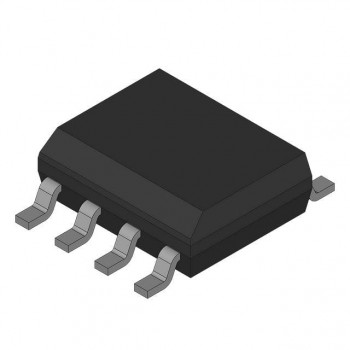

FAN7081M

FAN7081M

Manufacturer Part FAN7081M
Manufacturer Fairchild Semiconductor
Description BUFFER/INVERTER MOSFET DRIVER
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Driven Configuration:High-Side
Channel Type:Single
Number of Drivers:1
Gate Type:IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply:10V ~ 20V
Logic Voltage - VIL, VIH:8V, 12.6V
Current - Peak Output (Source, Sink):250mA, 500mA
Input Type:Inverting
High Side Voltage - Max (Bootstrap):600 V
Rise / Fall Time (Typ):15ns, 10ns
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
