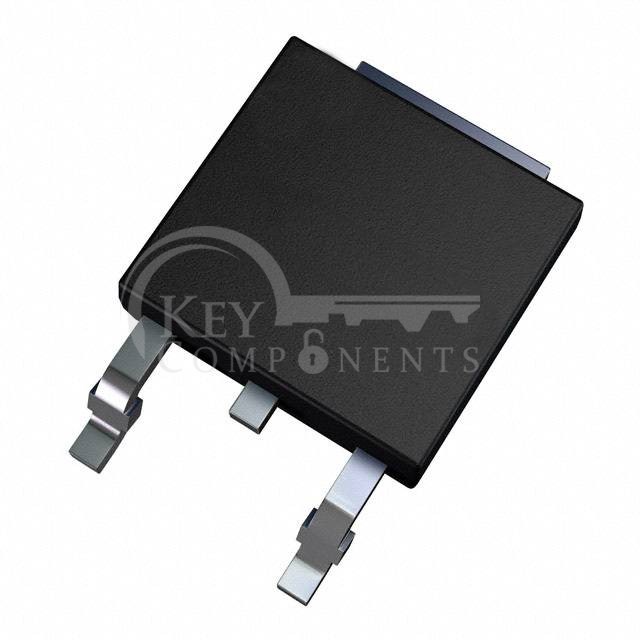

HUFA76609D3ST

Manufacturer Part	HUFA76609D3ST
Manufacturer	Fairchild Semiconductor
Description	MOSFET N-CH 100V 10A TO252AA
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	160mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	16 nC @ 10 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	425 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	49W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-252, (D-Pak)
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
