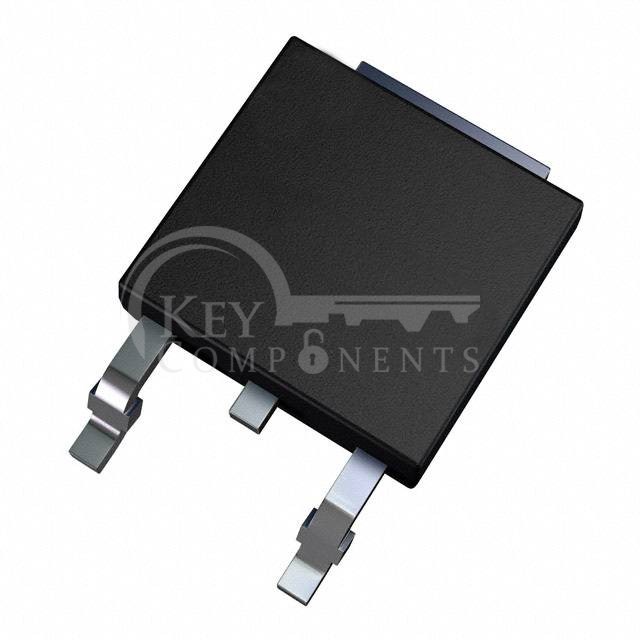

IRFR4105TRPBF

Manufacturer Part	IRFR4105TRPBF
Manufacturer	Infineon Technologies
Description	MOSFET N-CH 55V 27A DPAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	55 V
Current - Continuous Drain (Id) @ 25°C:	27A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	45mOhm @ 16A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	34 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	700 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	68W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D-Pak
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
