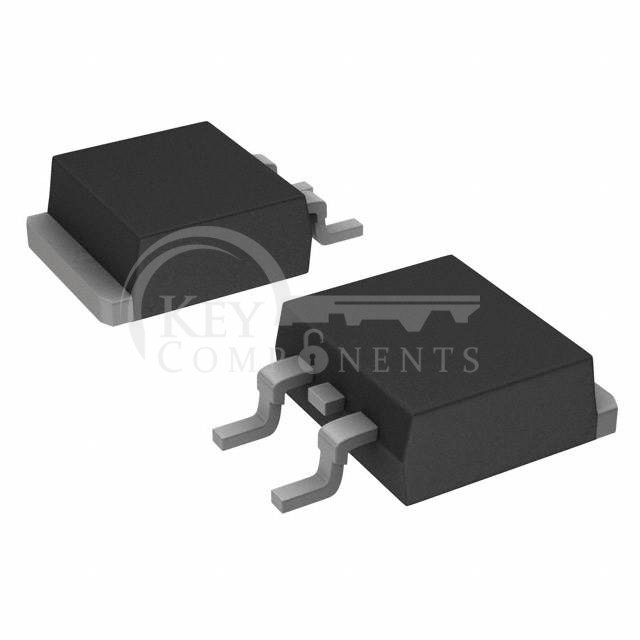

IRFS3806PBF

Manufacturer Part	IRFS3806PBF
Manufacturer	International Rectifier
Description	MOSFET N-CH 60V 43A D2PAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	43A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	15.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	4V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	30 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1150 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	71W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
