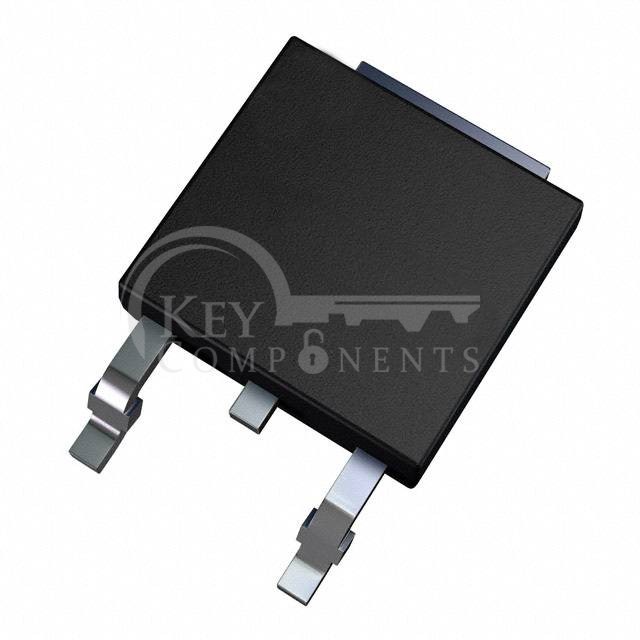

IRLR3802TRPBF

Manufacturer Part	IRLR3802TRPBF
Manufacturer	International Rectifier
Description	IRLR3802 - HEXFET POWER MOSFET
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	84A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.8V, 4.5V
Rds On (Max) @ Id, Vgs:	8.5mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id:	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	41 nC @ 5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	2490 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	88W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D-Pak
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
