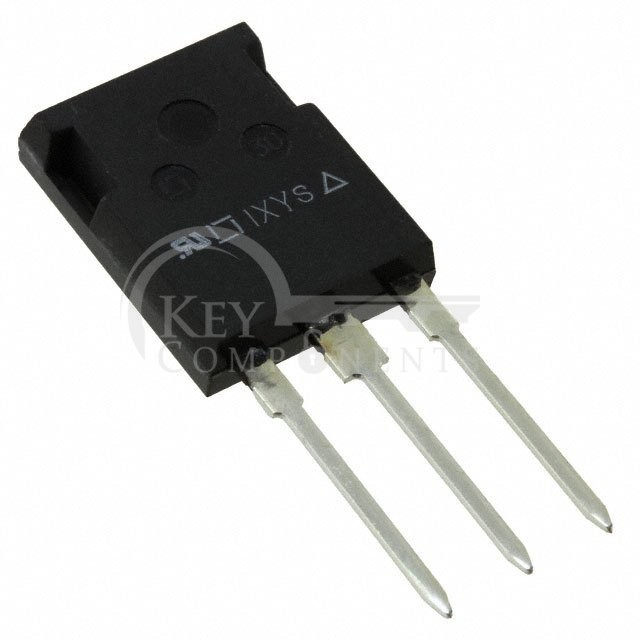

CS45-16IO1R

CS45-16IO1R

Manufacturer Part CS45-16IO1R
Manufacturer IXYS
Description SCR 1.6KV 75A ISOPLUS247
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Voltage - Off State:1.6 kV
Voltage - Gate Trigger (Vgt) (Max):1.5 V
Current - Gate Trigger (Igt) (Max):100 mA
Voltage - On State (Vtm) (Max):1.64 V
Current - On State (It (AV)) (Max):48 A
Current - On State (It (RMS)) (Max):75 A
Current - Hold (Ih) (Max):100 mA
Current - Off State (Max):5 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):520A, 560A
SCR Type:Standard Recovery
Operating Temperature:-40°C ~ 140°C
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:ISOPLUS247™
