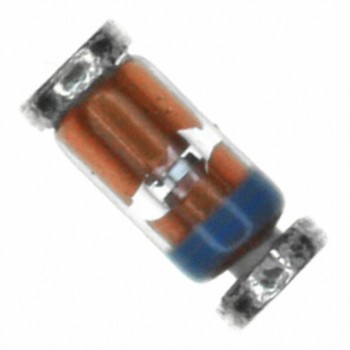

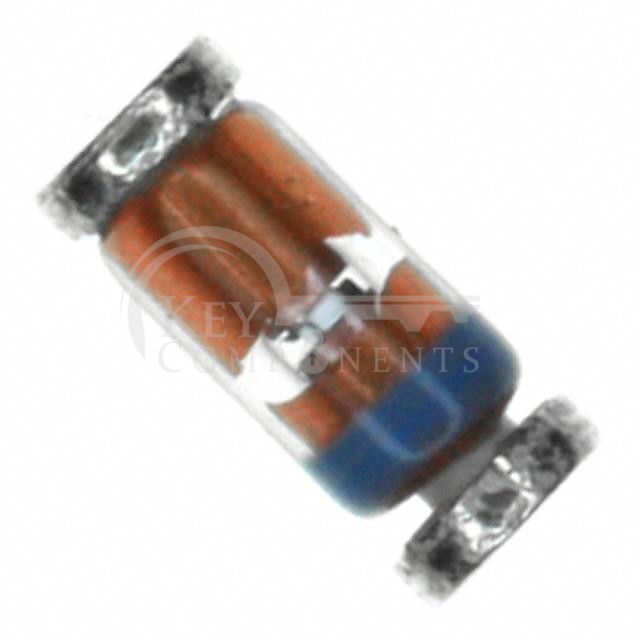

DL5245B-TP
| Manufacturer Part | DL5245B-TP |
|---|---|
| Manufacturer | Micro Commercial Co |
| Description | DIODE ZENER 15V 500MW MINI MELF |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Voltage - Zener (Nom) (Vz): | 15 V |
| Tolerance: | ±5% |
| Power - Max: | 500 mW |
| Impedance (Max) (Zzt): | 16 Ohms |
| Current - Reverse Leakage @ Vr: | 100 nA @ 11 V |
| Voltage - Forward (Vf) (Max) @ If: | 1.1 V @ 200 mA |
| Operating Temperature: | -65°C ~ 175°C |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package: | Mini MELF |
