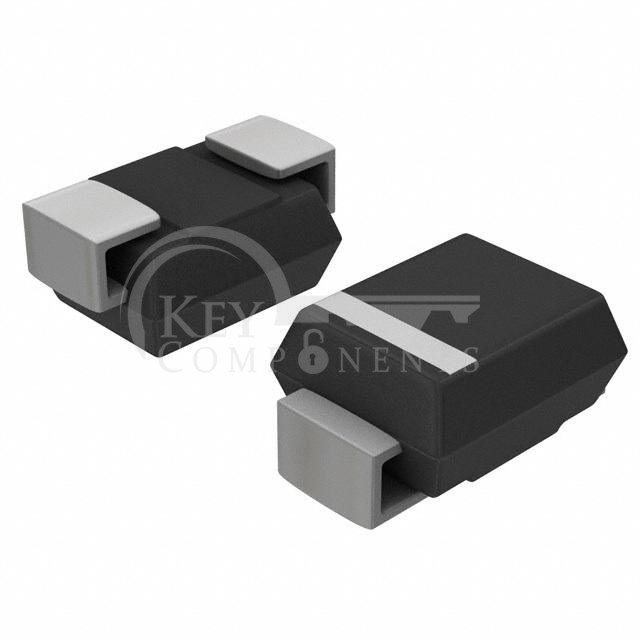

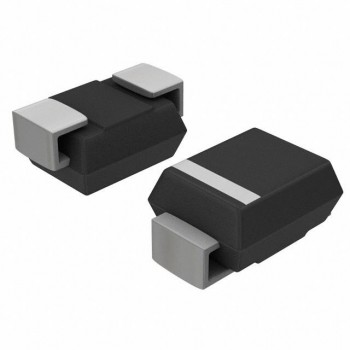

SMCJ13A-TP

SMCJ13A-TP

Manufacturer Part SMCJ13A-TP
Manufacturer Micro Commercial Co
Description TVS DIODE 13VWM 21.5VC DO214AB
Category Circuit Protection
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):13V
Voltage - Breakdown (Min):14.4V
Voltage - Clamping (Max) @ Ipp:21.5V
Current - Peak Pulse (10/1000µs):69.8A
Power - Peak Pulse:1500W (1.5kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AB, SMC
Supplier Device Package:SMC (DO-214AB)
