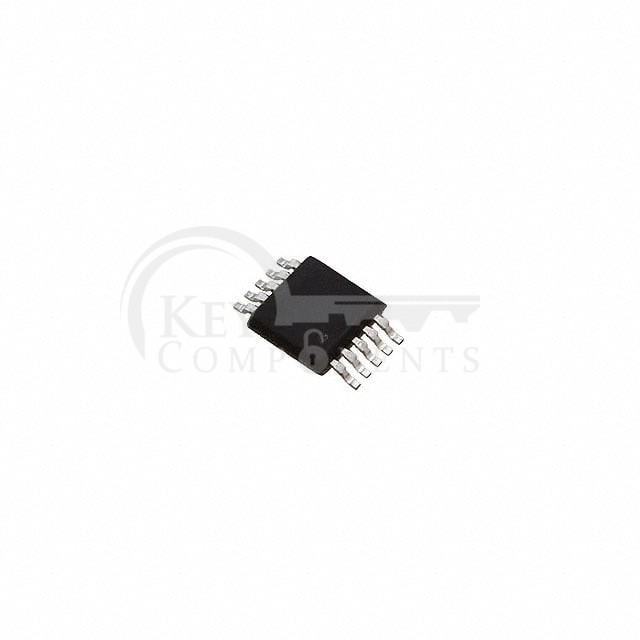

ATA5756C-6DQY-66

ATA5756C-6DQY-66

Manufacturer Part ATA5756C-6DQY-66
Manufacturer Microchip Technology
Description RF TX IC ASK/FSK 315MHZ 10TFSOP
Category RF/IF and RFID
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Frequency:315MHz
Applications:TPM (Tire Pressure Monitor)
Modulation or Protocol:ASK, FSK
Data Rate (Max):40kbps
Power - Output:6dBm
Current - Transmitting:8.8mA
Data Interface:PCB, Surface Mount
Antenna Connector:PCB, Surface Mount
Memory Size:-
Features:-
Voltage - Supply:2V ~ 3.6V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package:10-TSSOP
