ATA5780N-PNQW

ATA5780N-PNQW

Manufacturer Part ATA5780N-PNQW
Manufacturer Microchip Technology
Description RF RX UHF/ASK/FSK 315MHZ 32VQFN
Category RF/IF and RFID
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Frequency:315MHz, 433MHz, 868MHz, 915MHz
Sensitivity:-121dBm
Data Rate (Max):20kbps
Modulation or Protocol:UHF, ASK, FSK
Applications:General Purpose
Current - Receiving:9.3mA
Data Interface:PCB, Surface Mount
Memory Size:-
Antenna Connector:PCB, Surface Mount
Features:-
Voltage - Supply:1.9V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount

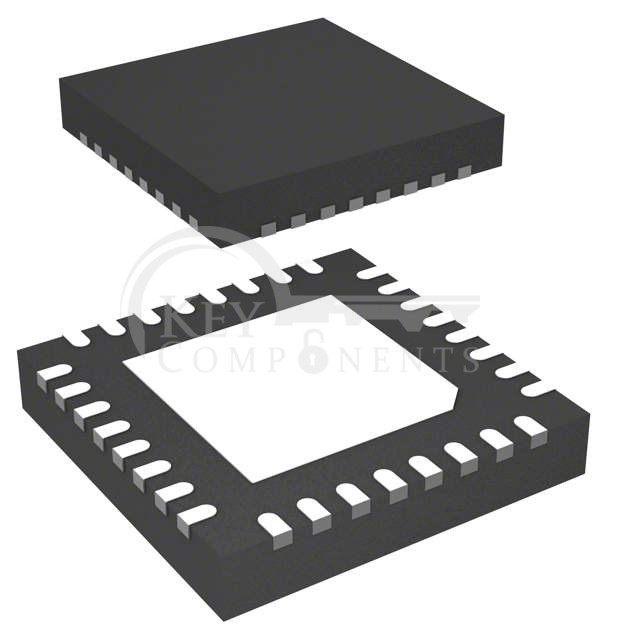

Package / Case:32-VFQFN Exposed Pad
Supplier Device Package:32-QFN (5x5)
