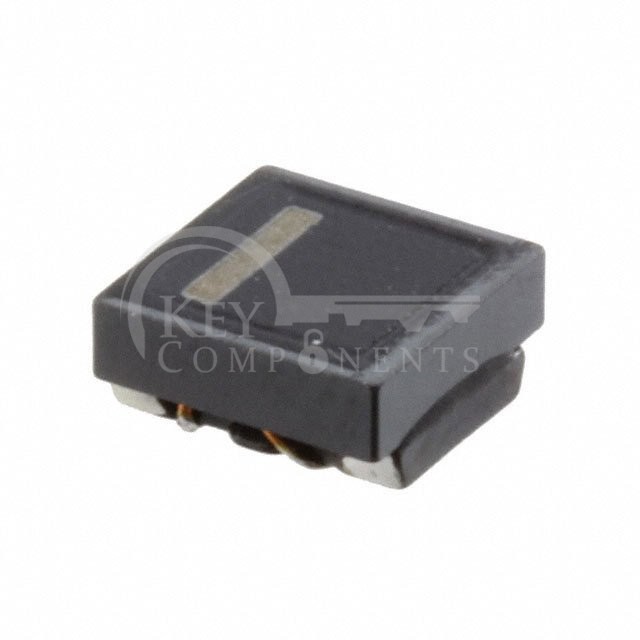

DLW5BTN501SQ2L
| Manufacturer Part | DLW5BTN501SQ2L |
|---|---|
| Manufacturer | Murata Electronics |
| Description | CMC 4A 2LN 500 OHM SMD |
| Category | Filters |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Filter Type: | Power, Signal Line |
| Number of Lines: | 2 |
| Impedance @ Frequency: | 500 Ohms @ 100 MHz |
| Inductance @ Frequency: | - |
| Current Rating (Max): | 4A |
| DC Resistance (DCR) (Max): | 19mOhm (Typ) |
| Voltage Rating - DC: | 50V |
| Voltage Rating - AC: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Ratings: | - |
| Approval Agency: | - |
| Features: | - |
| Mounting Type: | Surface Mount |
| Size / Dimension: | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height (Max): | 0.098" (2.50mm) |
| Package / Case: | Horizontal, 4 J-Lead |
