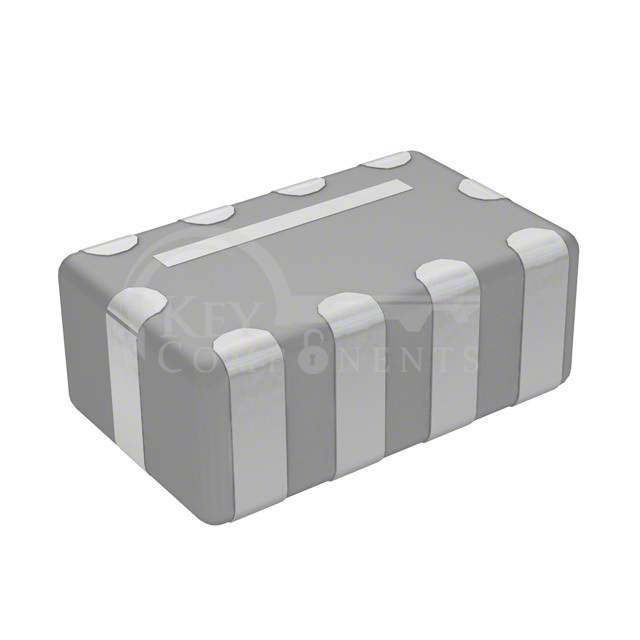

LXES21DAA4-136

LXES21DAA4-136

Manufacturer Part LXES21DAA4-136
Manufacturer Murata Electronics
Description TVS DIODE 5VWM 10SMD
Category Filters
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Filter Type:Signal Line
Number of Lines:4
Impedance @ Frequency:100 MHz @ 60 Ohms
Inductance @ Frequency:-
Current Rating (Max):60mA
DC Resistance (DCR) (Max):3Ohm
Voltage Rating - DC:5V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max):0.031" (0.80mm)
Package / Case:-
