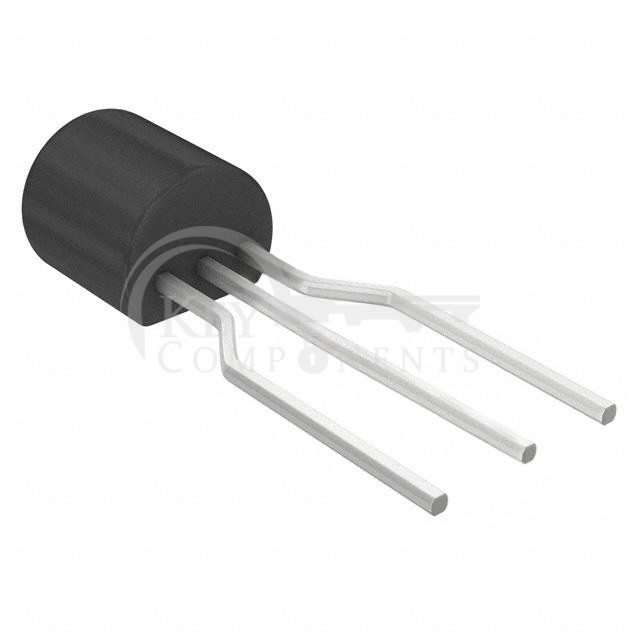

2N7000TA

Manufacturer Part	2N7000TA
Manufacturer	onsemi
Description	MOSFET N-CH 60V 200MA TO92-3
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	200mA (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	50 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	400mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-92-3
Package / Case:	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
