55GN01CA-TB-E
| Manufacturer Part | 55GN01CA-TB-E |
|---|---|
| Manufacturer | onsemi |
| Description | RF TRANS NPN 10V 4.5GHZ 3CP |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Transistor Type: | NPN |
| Voltage - Collector Emitter Breakdown (Max): | 10V |
| Frequency - Transition: | 4.5GHz |
| Noise Figure (dB Typ @ f): | 1.9dB @ 1GHz |
| Gain: | 9.5dB |
| Power - Max: | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 10mA, 5V |
| Current - Collector (Ic) (Max): | 70mA |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |

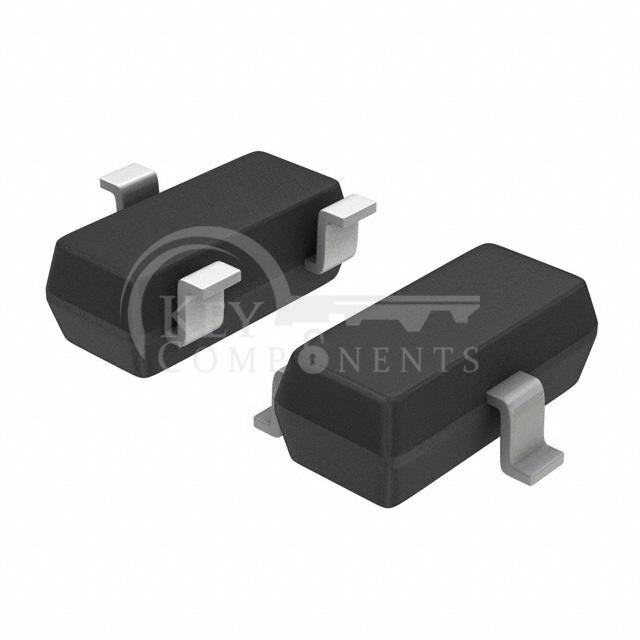

| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | 3-CP |
