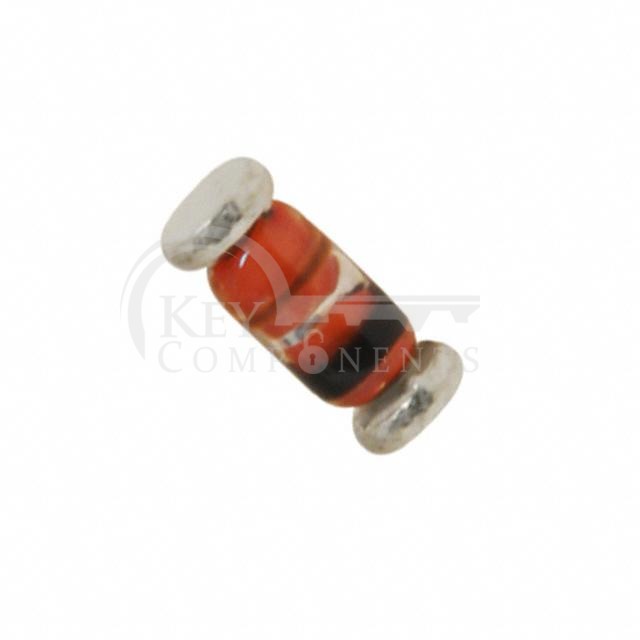

BAV103

Manufacturer Part	BAV103
Manufacturer	onsemi
Description	DIODE GEN PURP 200V 200MA SOD80
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	100 nA @ 200 V
Capacitance @ Vr, F:	5pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package:	SOD-80
Operating Temperature - Junction:	-65°C ~ 200°C
