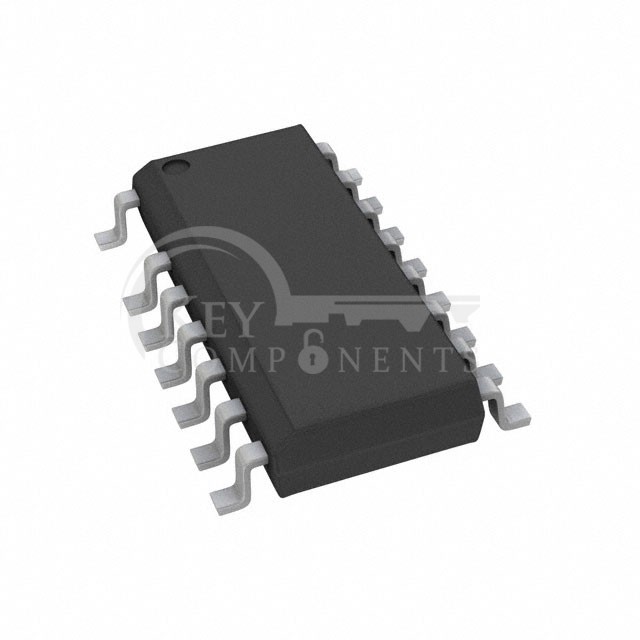

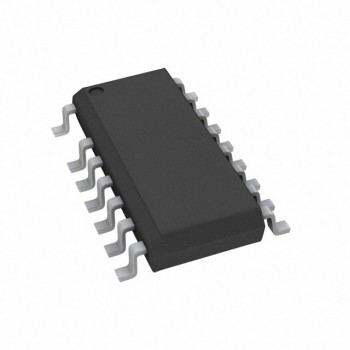

NCL30030B1DR2G
| Manufacturer Part | NCL30030B1DR2G |
|---|---|
| Manufacturer | onsemi |
| Description | IC LED DRIVER OFFL 500MA 16SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | AC DC Offline Switcher |
| Topology: | Flyback |
| Internal Switch(s): | No |
| Number of Outputs: | 1 |
| Voltage - Supply (Min): | 9V |
| Voltage - Supply (Max): | 30V |
| Voltage - Output: | - |
| Current - Output / Channel: | - |
| Frequency: | - |
| Dimming: | - |
| Applications: | Lighting, Signage |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width), 15 Leads |
| Supplier Device Package: | 16-SOIC |
