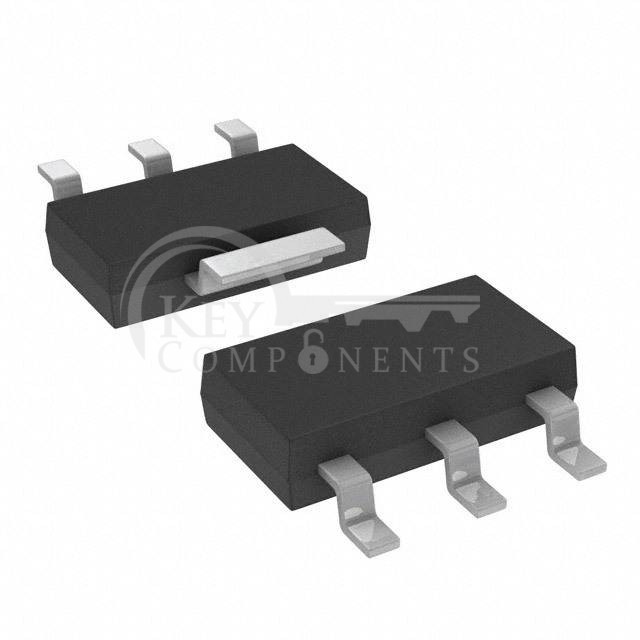

NCV1077STBT3G

Manufacturer Part	NCV1077STBT3G
Manufacturer	onsemi
Description	IC OFFLINE SWITCH FLYBACK SOT223
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Output Isolation:	Non-Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	670V
Topology:	Flyback
Voltage - Start Up:	8.1 V
Voltage - Supply (Vcc/Vdd):	7.7V ~ 8.5V
Duty Cycle:	69%
Frequency - Switching:	100kHz
Power (Watts):	25 W
Fault Protection:	Current Limiting, Over Load, Over Voltage, Short Circuit
Control Features:	EN, Frequency Control, Soft Start
Operating Temperature:	-40°C ~ 125°C (TJ)
Package / Case:	TO-261-4, TO-261AA
Supplier Device Package:	SOT-223 (TO-261)
Mounting Type:	Surface Mount
